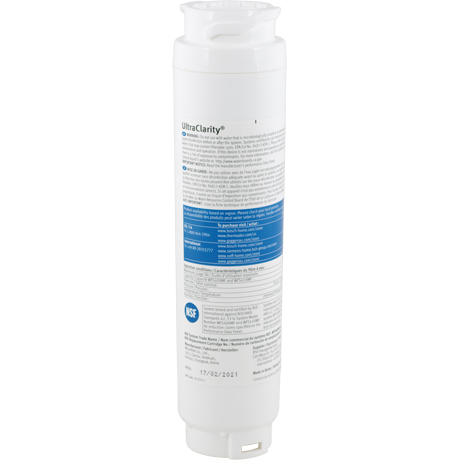

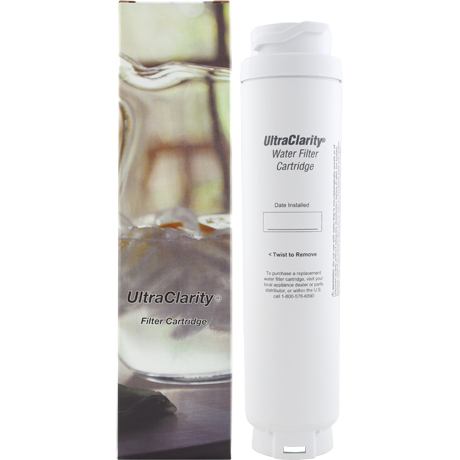

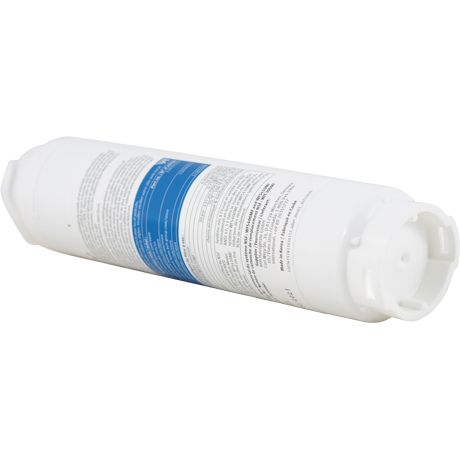

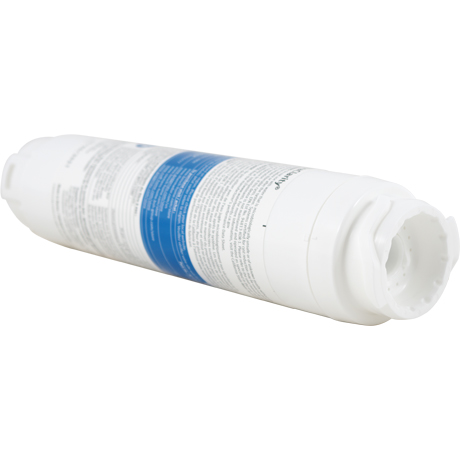

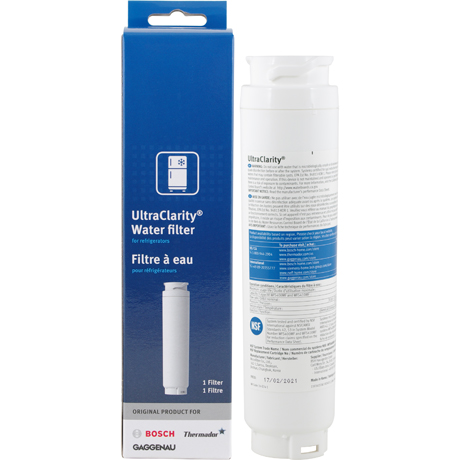

Bosch 9000 194412 UltraClarity Filter Cartridge

The Bosch / Cuno 9000 194412 UltraClarity Filter Cartridge REPLFLTR10 replacement fits Bosch, Gaggenau, and Thermador refrigerators with a long round filter.

The Bosch 9000 194412 / 644845 / 641425 fits certain U.S. Bosch refrigerators that use the Bosch EVOLFLTR10 filter system, including the following models:

Bosch

• Evolution 500 Series
• Linea 500 Series: B22CS50SNS, B22CS50SNS/01, B22CS50SNS/02, B22CS50SNS/03, B22CS50SNW, B22CS50SNW/01, B22CS50SNW/02, B22CS50SNW/03
• Linea 800 Series: B22CS80SNS, B22CS80SNS/01, B22CS80SNS/02, B22CS80SNS/03
• 800 Series: B26FT70SNS, B26FT70SNS/01
• KAD62 Series
• Siemens KA62 Series
• Neff K5930 Series
• Neff K5920 Series

Thermador Freezers / Freezer Columns

• Any Thermador freezer whose model number starts with T181F, T181D, T241F, T241D, or T301F
• T18ID80NLP, T18ID80NRP, T18IF70NSP
• T24ID80NLP, T24ID80NRP, T24IF70NSP
• T30IF70NSP

The Bosch / Cuno Ultra Clarity REPLFLTR10 / 9000 194412 refrigerator/icemaker water filter replaces the following older filter part numbers:

• 9000 077104, 9000 077095, 9000 077096, 9000 077104, 9000 194412
• 9000 225 170, 9000225170, 9000 077 104, 9000077104
• 101443 0109, 101732 0109, 101443 0510
• 644845, 641425, BT-644845, VIB REPLFLTR10

Specifications

• Filter Life: 6 months or 740 gallons (whichever comes first)
• Flow Rate: 0.75 gallons per minute
• Operating Pressure: 33-120 psi
• Operating Temperature: 33-100 °F
• Filter Size: 8-1/4" (Length) x 2" (Diameter)
• Country of Origin: U.S.A.

• Twist the used filter counterclockwise 1/2 turn and pull the filter straight down (The water shuts off automatically so you don’t have to worry about flooding your refrigerator)
• Take the knob/cap off of the end of the used filter
• Snap the knob/cap onto the end of the new filter
• Push the new filter into the fridge until it goes no further, with the knob in the horizontal position
• Twist the filter clockwise 1/2 turn
• If your refrigerator has a “Change Filter“ light, reset it

• Press the dispenser Super and Ice buttons and hold them down for approx. 3 seconds

The UltraClarity REPLFLTR10 9000 194412 filter cartridge replacement has been tested and certified in 9000 077095 and 9000 077096 by NSF International to meet or exceed NSF/ANSI Standards 42 and 53 for the reduction of:

• 97.50% of Chlorine
• 99.99% of Cysts
• 99.00% of Particulates (Class I)
• 98.80% of Turbidity
