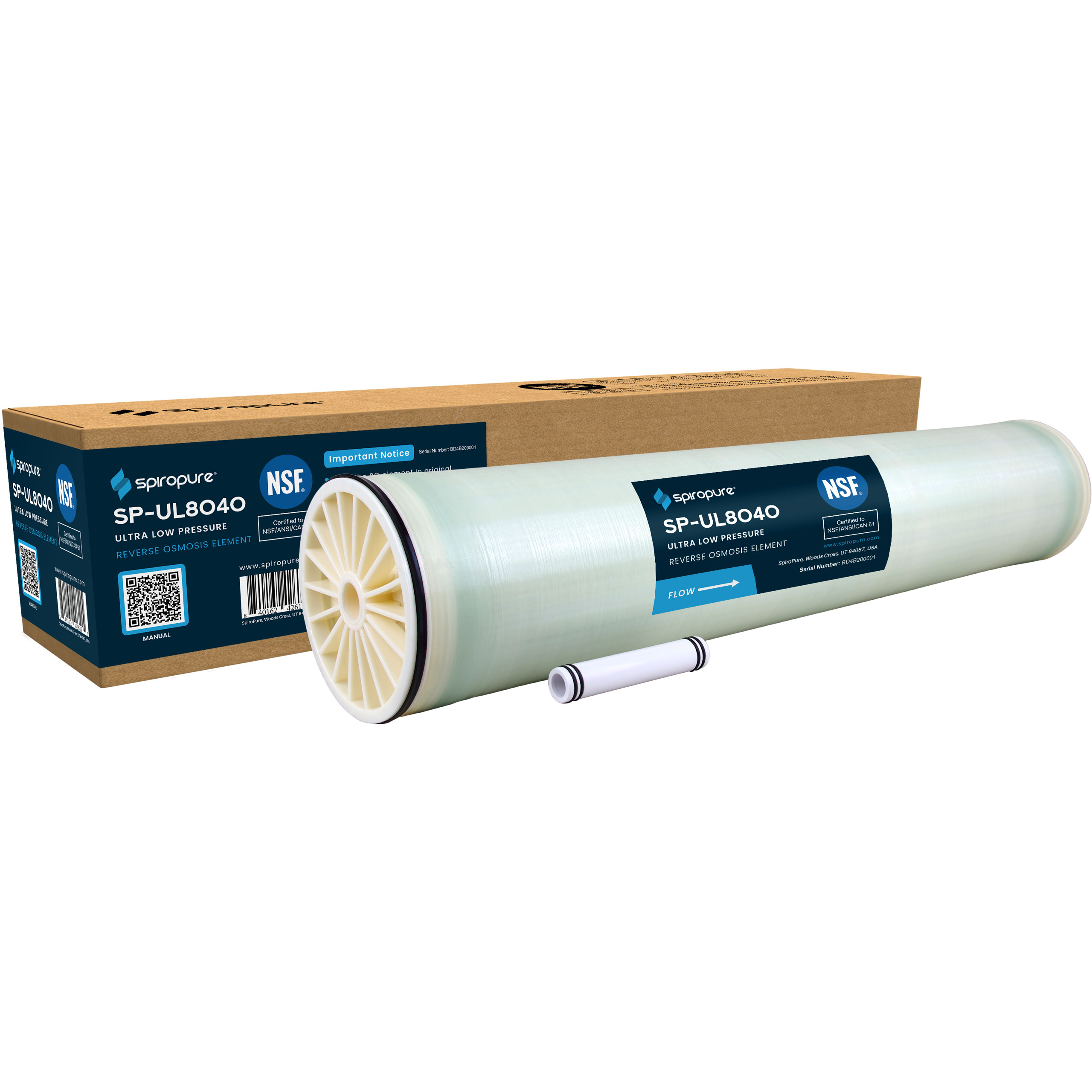

The SpiroPure SP-UL8040 is an 8" × 40" ultra low pressure industrial reverse osmosis membrane for commercial and industrial water treatment systems. Under specified manufacturer test conditions, it delivers 99.4% nominal salt rejection and an average permeate flow of 10,500 GPD ±15% at 150 PSI, using 1,500 ppm NaCl feedwater at 15% recovery.

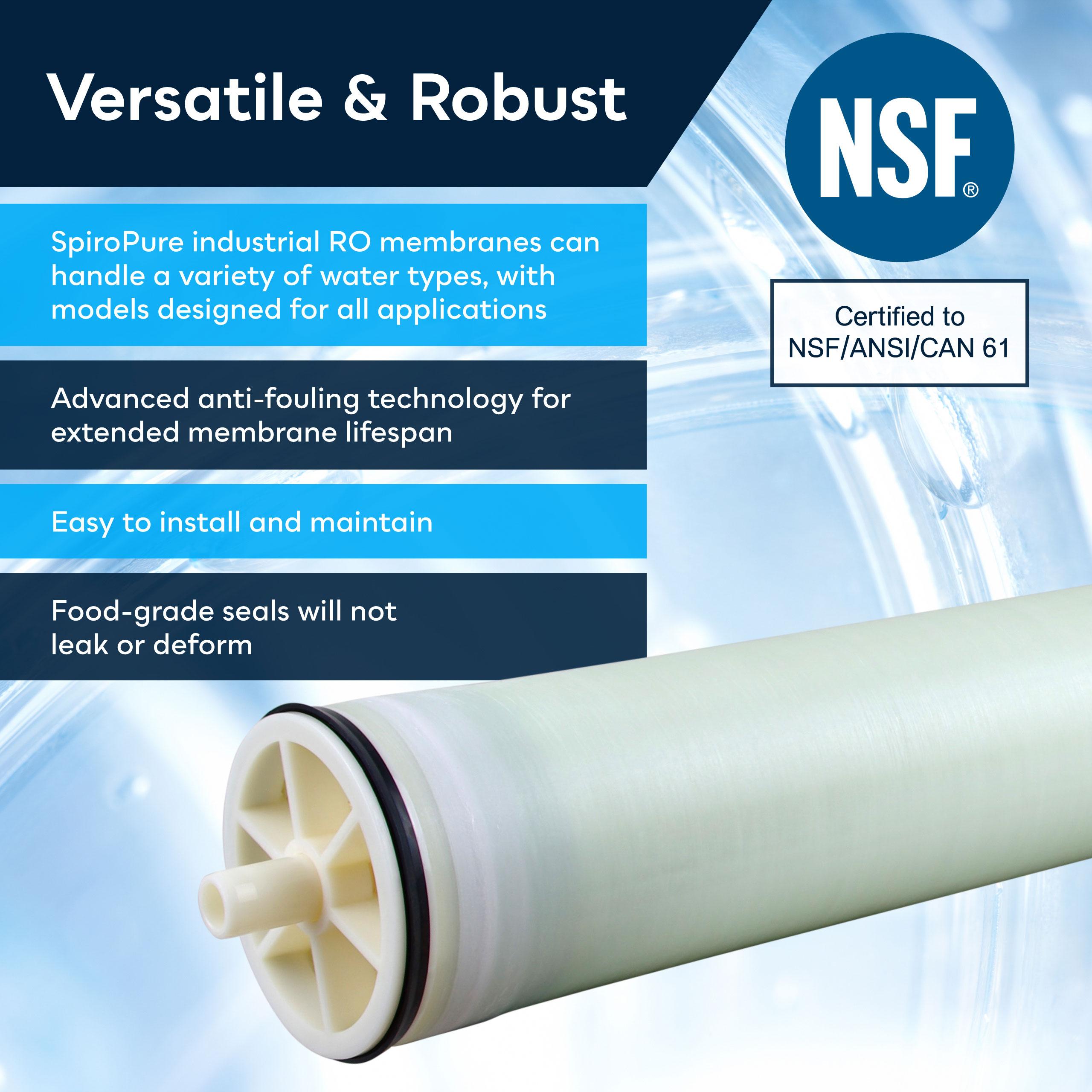

Certified to NSF/ANSI/CAN 61 for drinking-water-contact material health effects. Confirm membrane dimensions, pressure-vessel compatibility, and system operating requirements before replacement.

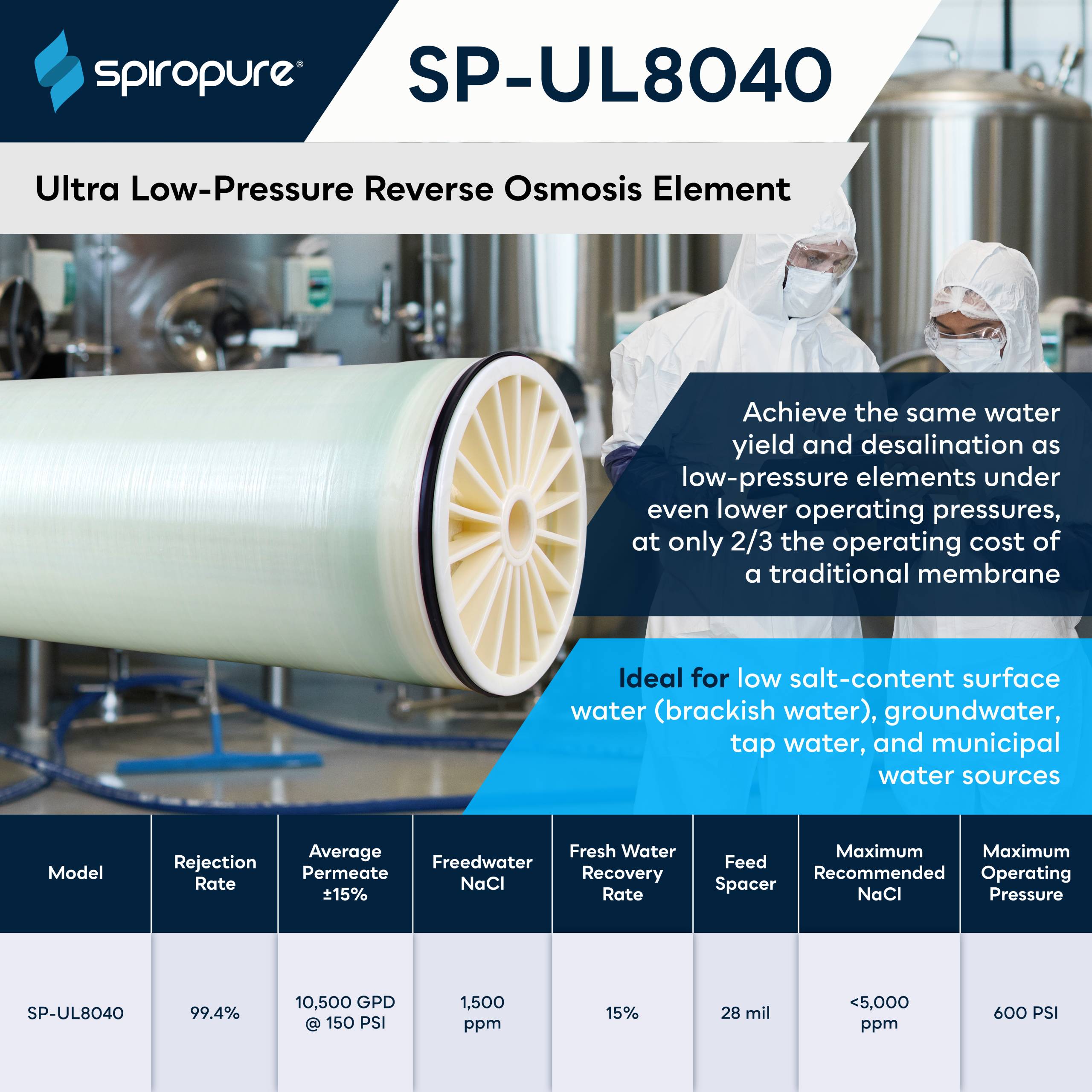

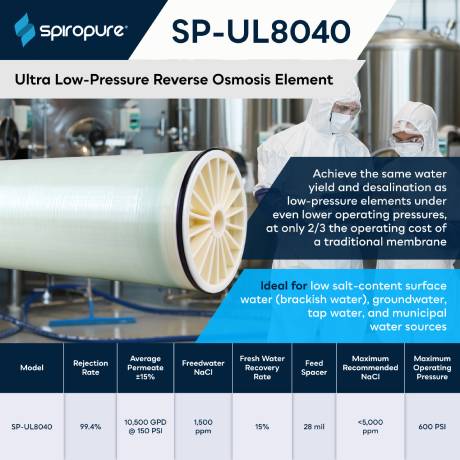

Ultra Low-Pressure RO Membrane Specifications:

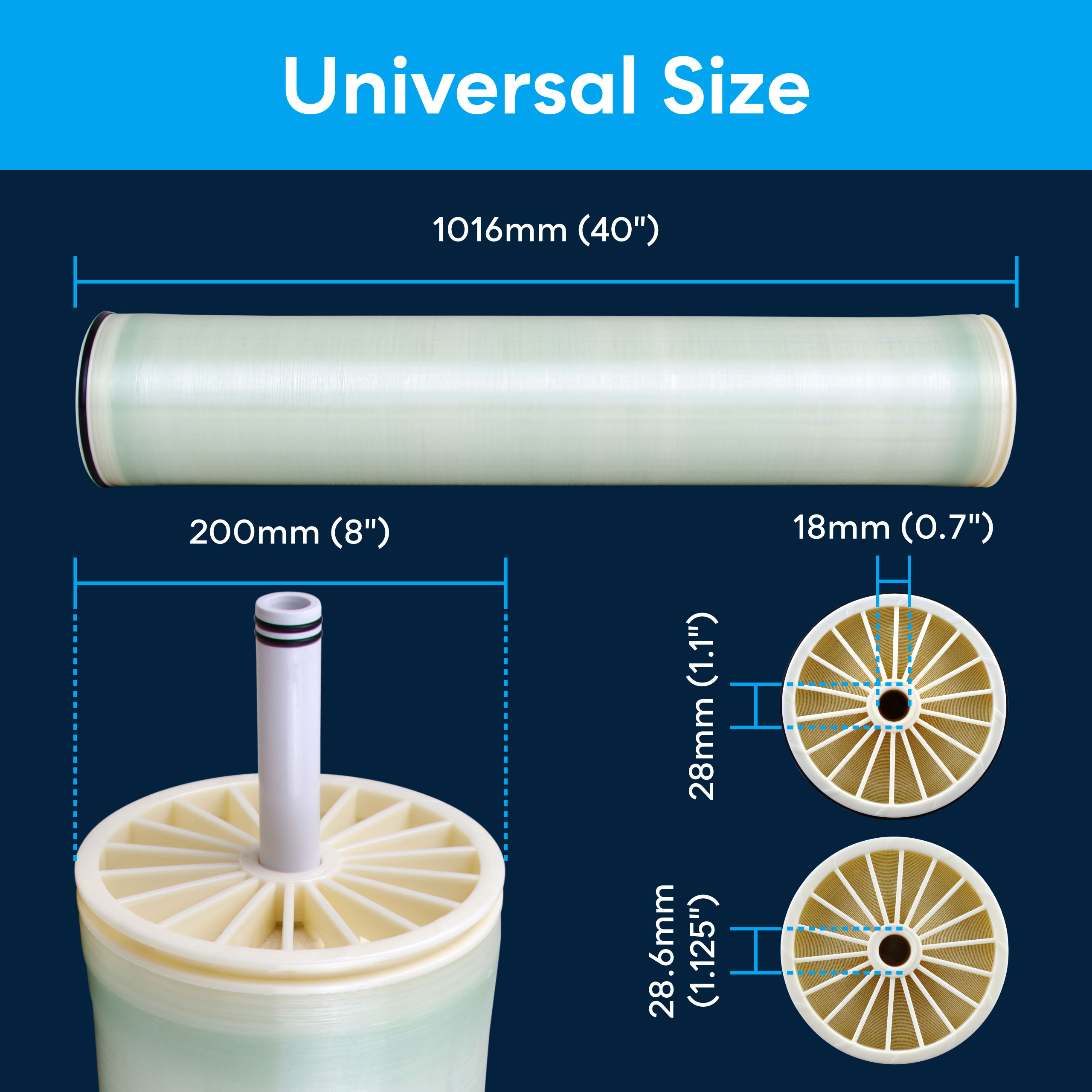

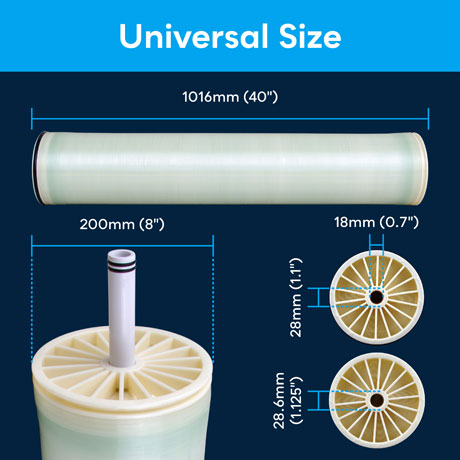

- Nominal Size: 8" x 40"
- Certification: NSF 61 certified
- Salt Rejection Rate: 99.4%
- Average Permeate ±15%: 10,500 GPD @ 150 PSI
- Feedwater NaCl: 1,500 ppm
- Fresh Water Recovery Rate: 15%
- Feed Spacer: 28 mil
- Maximum Recommended NaCl: <5,000 ppm
- Maximum Operating Pressure 600 PSI
ULP-8040 Ultra Low Energy Membrane common applications:
- Low salt-content surface water (brackish water)
- Groundwater
- Tap water
- Municipal water sources
- Surface water
- Small and medium commercial pure water systems
- Drinking water
SP-UL8040 Ultra Low Pressure Element compatible model numbers:
- LE1-8040
- Dupont Filmtec ECO PRO-400
- Hydranautics Nitto ESPA1/ESPA2
- Hydronix Hydron HLP-8040
- LG Chem LG-BW-400-ES
- Toray TMG20D-400
- ULP-8040
FAQs on 8040 Industrial RO Membrane
What is an 8040 ultra low pressure RO membrane?
An 8040 ultra low pressure RO membrane is an industrial reverse osmosis element designed for operation at relatively low pressure. The SpiroPure SP-UL8040 measures 8" × 40" and has an average permeate flow rating of 10,500 GPD ±15% at 150 PSI under manufacturer test conditions using 1,500 ppm NaCl feedwater at 15% recovery.
Where can the SpiroPure SP-UL8040 membrane be used?

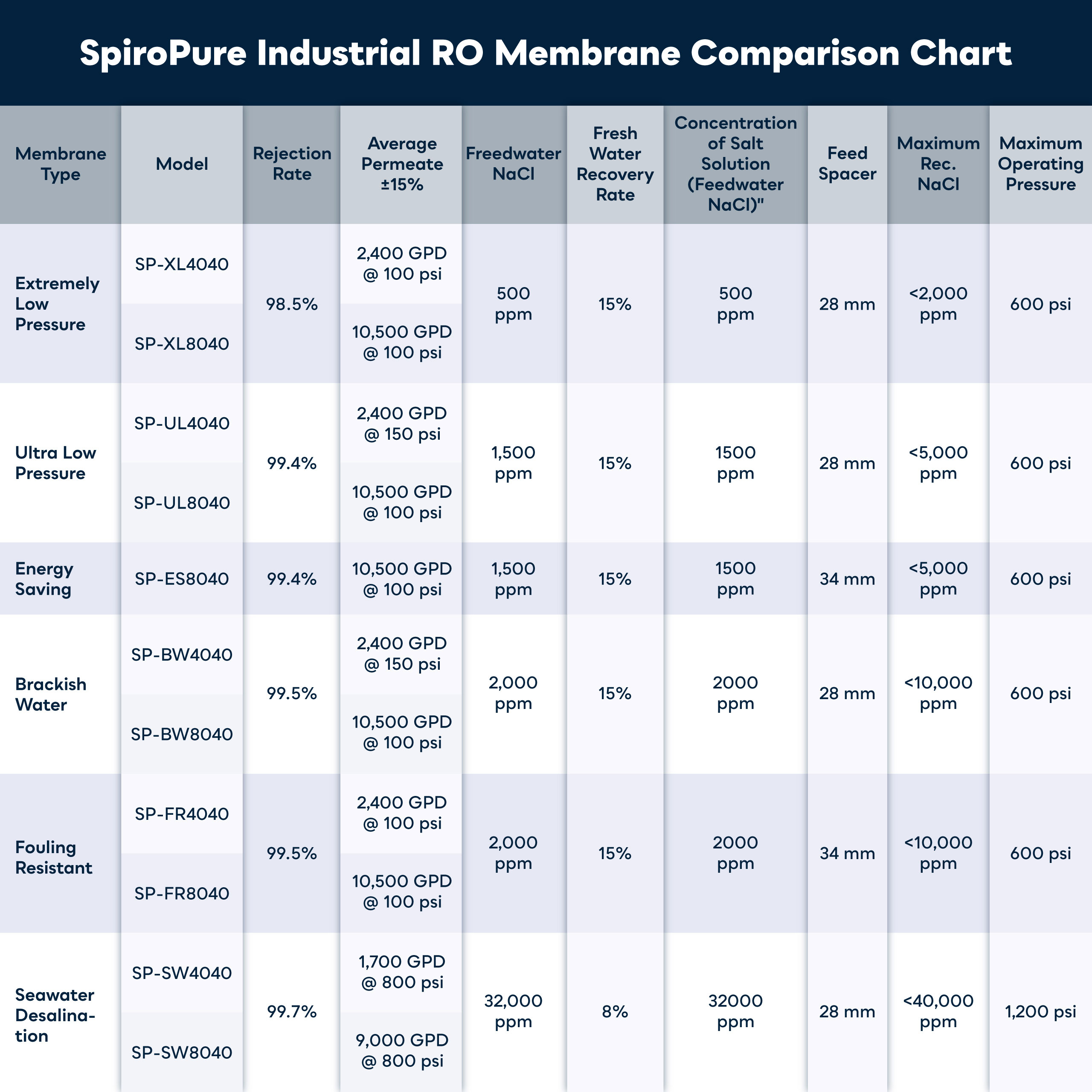

The SP-UL8040 is suitable for low salt-content surface water, groundwater, tap water, and municipal water sources. It's commonly used in small and medium commercial pure water systems where reducing energy consumption matters as much as output capacity. The ultra low pressure models sit in a middle ground between the XL extra low pressure and brackish water membranes for tested pressure and feedwater NaCl.
What is the flow rate of the SP-UL8040 membrane?
The SpiroPure SP-UL8040 produces an average permeate output of 10,500 GPD (±15%) at 150 PSI, with a 15% fresh water recovery rate, tested against 1,500 ppm feedwater NaCl.
Is the ULP 8040 membrane suitable for brackish water?
The SP-UL8040 has a published maximum recommended feedwater NaCl concentration below 5,000 ppm. Suitability for a particular application depends on feedwater composition, pretreatment and system operating requirements.
Which membranes can the SP-UL8040 replace?
The SpiroPure SP-UL8040 is listed as a compatible alternative for select 8" × 40" industrial RO membranes, including DuPont FilmTec ECO PRO-400, Toray TMG20D-400 and Hydranautics ESPA1 / ESPA2. Confirm the exact replacement model, membrane dimensions and system operating requirements before ordering.
How much does the SpiroPure SP-UL8040 cost?
Current pricing is displayed at the top of this product page. For larger quantities or commercial purchasing requirements, contact AllFilters for assistance.
